Squishy Robotics, Hazardous Environment Robot

The Problem

Squishy Robotic’s platform allows their robots to carry payloads and be dropped from the sky into hazardous locations from a thousand feet in the sky. Our team was tasks to build a new payload to help detect methane gas to be used in detecting leaks for the oil and gas industry.

My Work

My work on this project involved creating the optical gas imaging sensor which is to be used as the primary form of gas detection. This sensor would be built onto a pan-tilt system which will be integrated into a Squishy Robotics Payload. This payload is the main goal for my contribution to this project.

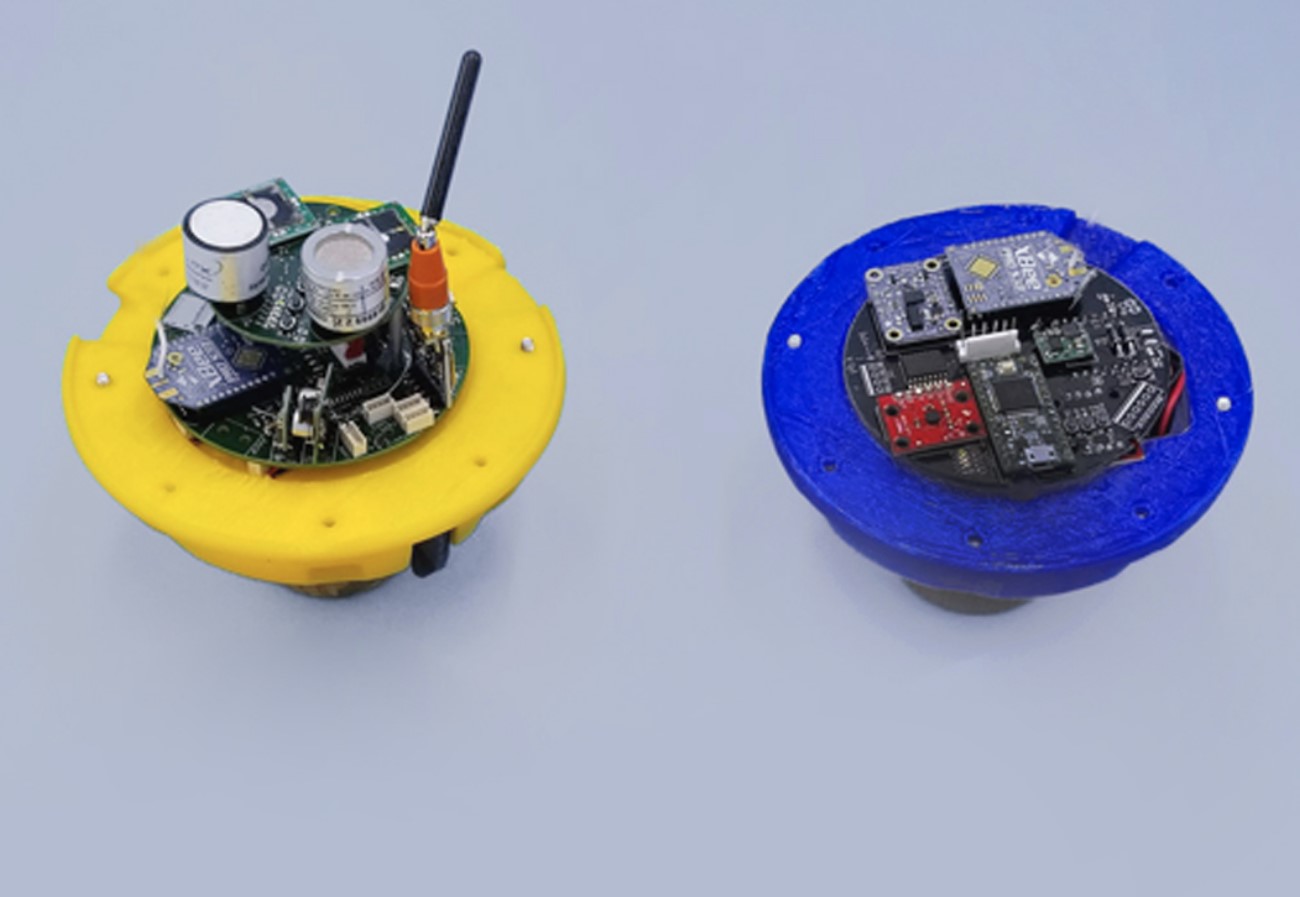

Example Squishy Robotics Payload
Example Squishy Robotics Payload

The Optical Gas Imaging (OGI) Sensor

Primarily, the work done on this sensor was to build and tune an electric circuit which would allow us to readily read and interpret sensor data with a microcontroller. I designed a transimpedance amplifier circuit was designed and tuned for the sensor in conjunction with a lens to block out specific wavelengths of light not relevant to methane.

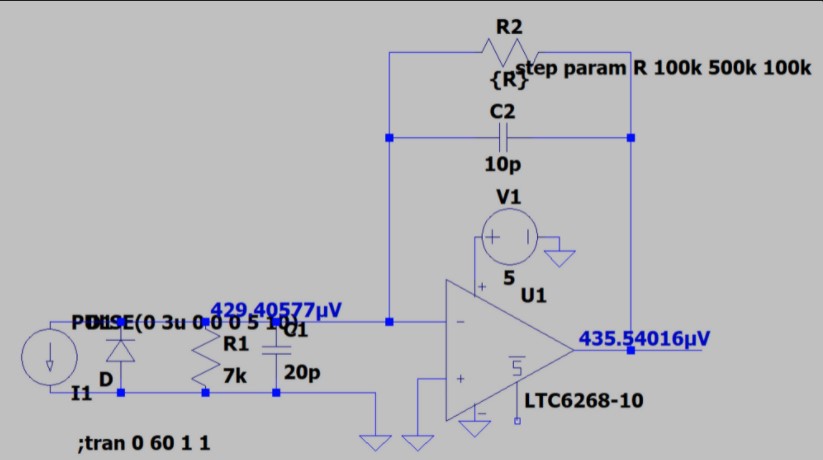

Rudimentary Simulation Schematic
Rudimentary Simulation Schematic

The Pan-Tilt Mechanism

The OGI Sensor would be put onto a pan-tilt mechanism to allow the OGI to scan over a large area for methane detection. I created a 3D model of the pan-tilt mechanism and built a test housing for the whole mechanism. I wrote the control schema for the pan-tilt, utilizing interrupts and PID control to allow for pseudo-simultaneous control of the device.

First Test of Prototype
First Test of Prototype
